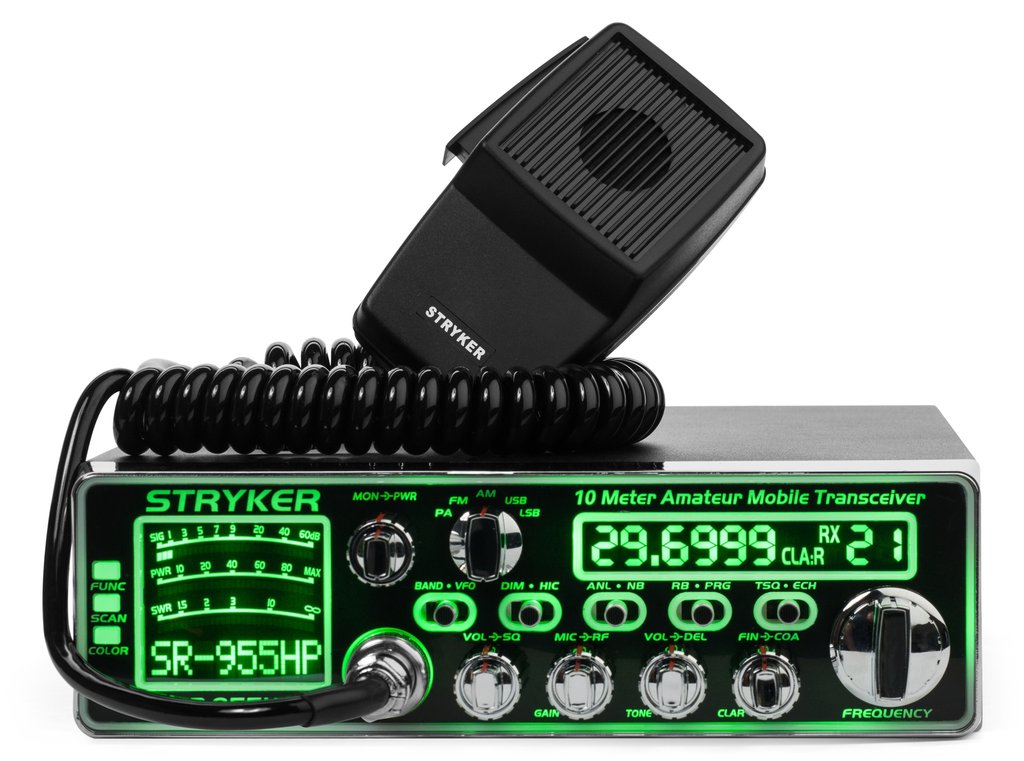

Stryker SR-955HPC

Loud & Clear Receiver
Excellent Stock Mic
High Power 60+ watts PEP
Variable Transmit Frequency Response
Receive Noise Reduction uses DSP
3-Year Warranty



General Specifications

Frequency Range: 28.000-29.700 MHz & 24.890 – 24.990
(PC Programmable)
Frequency Bands 1/2/3/4/5/6/7/8/9/10 & VFO
Channel 40 channels (programmable) in each band
Input voltage 13.8V (14.2 recommended)
Antenna connector UHF SO239
Frequency Control Phase-Locked-Loop Synthesizer
Frequency Step 100Hz/1KHz/10KHz/100KHz/1MHz
Frequency Tolerance of 0.005%
Frequency Stability 0.001%
Temperature Range -20c + 50c

Transmitter Specifications

Power Output AM: 15W 60+ W PEP / FM 45W / SSB: 60+W(PEP)
Current Drain 12A (with modulation)
Unwanted Sideband 50dB
Frequency Response:
AM/FM: 300 to 4000Hz *** SSB 450 to 2500Hz
Output Impedance 50 ohms, unbalanced
Modulation AM ***FM *** SSB
Inter-modulation Distortion SSB:
3rd order, more than -25dB
5th order, more than -35dB
SSB Carrier Suppression 55dB

Receiver Specifications

IF Frequency AM/FM:10.695 MHz 1st IF, 455 kHz 2nd IF SSB: 10.695MHz
RF Gain Control 45 dB for optimum signal reception
Automatic Gain Control:
Less than 10 dB change from 10 to 100,000 mv
Squelch Adjustable: threshold less than 1.0µV
Automatic Squelch Control(only AM/FM)1.0µV
Audio Output Power 3 watts into 8 ohms
Frequency response: AM/FM: 300 to 3000 Hz SSB 450 to 2500 Hz
Built-in Speaker 8 ohms, round.
External Speaker Jack Sensitivity SSB: 0.25µV for 10dB AM:1.0 µV for 10dB FM: 1.0µV for 20dB
Adjacent-Channel Selectivity: AM/FM: 70dB *** SSB: 70dB Image Rejection: More than 65 dB
